FEATURES:
- 2 channels
- 8 Ohm 2 x 1000 W
- 4 Ohm 2 x 1350 W
- 8 Ohm Bridged 1 x 2700 W
- Class H level 3
DESCRIPTION:

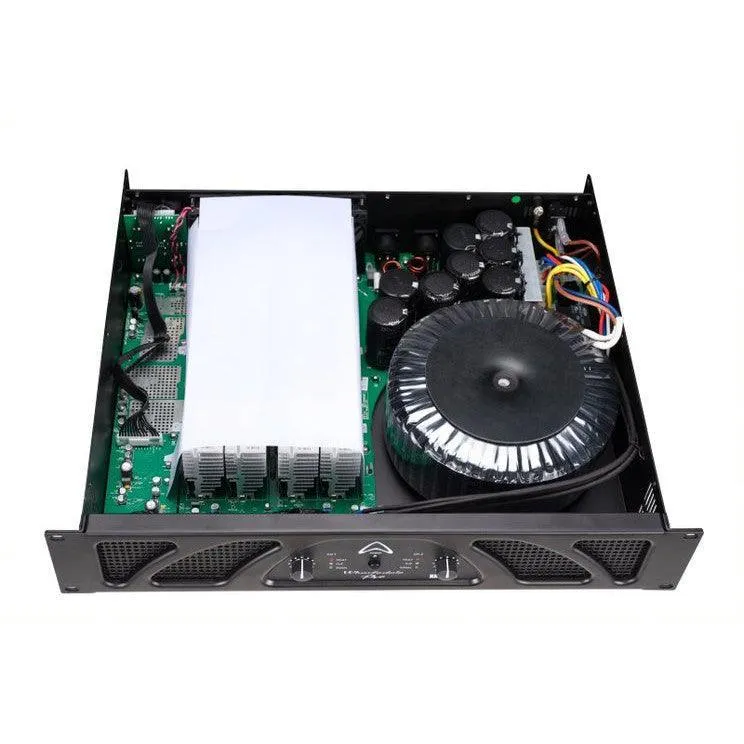

XR series are built around a massive heavy-duty toroidal transformer.
This delivers smooth and consistent power into the amplifier electronic circuits, resulting in stable and reliable output power, even in environments where AC may fluctuate.
An XR series amplifier features comprehensive protection circuitry. This ensures that no matter what problems might exist with external cabling, AC power or loudspeakers, the amplifier will protect itself, and its surroundings.

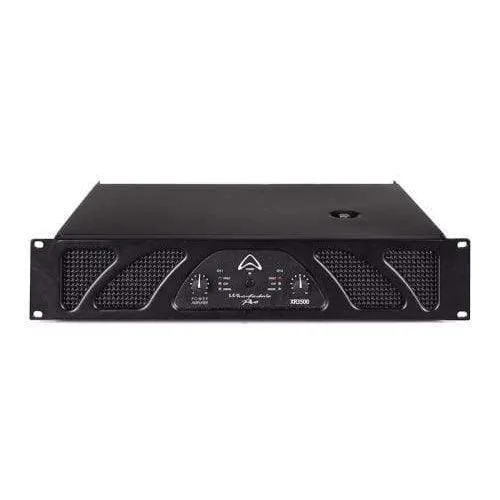

Front panel LED’s give immediate and clear feedback to the situation. Should an external fault occur, the red LED ‘Fault’ light will illuminate and the amp will go into Protection mode. A rear panel ‘Reset’ button is then available to reset the amplifier once the external fault has been diagnosed and removed.
Handy ‘Clip’ LED’s are also visible from the front panel. Even from a distance, its simple and clear to see and understand the status of the amp.
SPECIFICATIONS:
| Model Name | XR3500 |
| Stereo Power Output : RMS | |
| 8 Ω x 2 | 1000 w |
| 4 Ω x 2 | 1350 w |
| Bridged Mono Power Output : RMS | |
| 8 Ω | 2700 w |
| Frequency Response( /-10 dB) | 20 Hz – 20 KHz |
| Topology | Class H Level – 3 |
| Inputs | 2 x XLR |
| Outputs | 2 x NL4 (speakON compatible) |
| 2 x XLR link | |
| Input Sensitivity & impedance | |
| Sensitivity | 0.775 V or 1.4 V |
| Balanced XLR input Impedance | 20 KΩ |
| Maximum Input Level | 22 dBu (9.7 Vrms) |
| Voltage Gain | |
| Slew Rate | >10 V/us |
| Crosstalk | <-75 dB |
| S/N | >100 dB |
| Distortion (1 W) | <0.05% |
| Damping Factor (8 Ω), 10 Hz – 400 Hz | >200 |
| Dimensions | 482 mm x 88 mm x 390 mm |
| Net Weight | 18.0 kg |
| Gross Weight | 21.3 kg |
