Description:
Ultimate Power. Ultimate Control. Ultimate Laser.

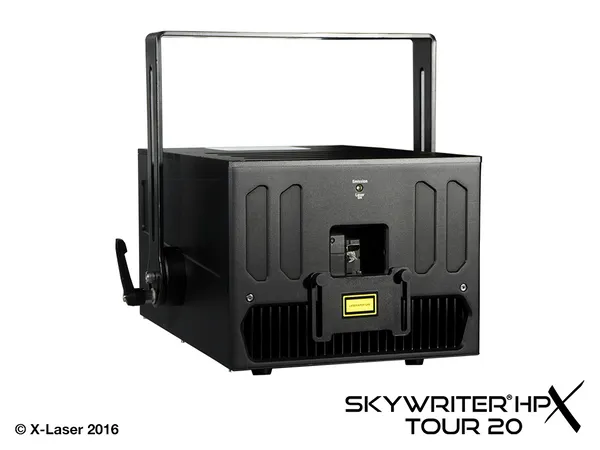

The Skywriter HPX M-20 is engineered to outmatch the competition by offering superior brightness, superior control and superior value. For the largest venues and audiences, indoors and out, X-Laser’s highest-powered lasers are the perfect solution for incredible laser effects.
The Skywriter HPX M-20 boasts 20W of RGB full-color laser effects and is perfect for large-scale professional touring and install applications. With the ultimate in RGB color mixing technology and total control featuring integrated X-Laser Mercury control for pro lighting consoles (DMX, sACN, Art-Net), the Skywriter HPX M-20 is an ultra-high-powered unit that makes a lasting impression.
As an added bonus, you'll get our for free with purchase; a $150 value!
Compliance note: All laser shows in the U.S. must have a remote interlock system (also called an E-Stop) accessible to the laser operator(s) at all times. For our Skywriter systems, the is the perfect solution.
- 20W balanced RGB laser engine
- Integrated with X-Laser’s Mercury laser control system with the master and basic profiles including:
- 450 gobos
- 11 digital prisms
- 50 color macros
- 60 motion macros with variable speed and amplitude
- 5-pin DMX
- Large, matte-finish LCD interface
- Art-Net connectivity (upgradable to our etherStop system)
- Ideal for large venues, touring acts and large production companies
- Sealed optical deck for resistance to water, wind and dust
- Series of external fans keep the components and diodes cool and running efficiently
- Precise and crisp low-divergence beams create beautiful animated and text effects
- Produces more than 1,000 colors with additive analog RGB color mixing
- Double quality checked in a 26-point inspection prior to shipping
- X-Laser no-hassle 2-year warranty
- Class 4 High-Powered Laser; FDA Variance required. Free EZ Variance Kit available separately
- Plastic molded road case with custom foam sold separately
Features:
Direct compatibility with lighting consoles
With X-Laser’s Mercury laser projector control system, The Skywriter HPX M-20 functions just like any other moving-head fixture when connected to a pro console.
Big power, big value
With 20W of laser power, The Skywriter HPX M-20 produce mind-blowing effects at a value that makes it accessible for venues, production companies and rental houses of all sizes.
Engineered for efficiency
Series of robust external cooling fans and hundreds of square inches of heat sinking area keep the fixture cool, to help your rig produce awesome effects for longer.
Road ready, road rugged
With a sealed optical deck for weather resistance and a solid build that makes rigging worry-free, you can focus on creating the best possible laser show both indoors and out.
Professional, precision graphics
With ILDA-standard 20K graphics scanners, you can easily create sharp and stunningly bright graphics, logos, text and animated projections up to 100 feet tall.
Certified to the world’s toughest quality standards
All X-Laser projectors are all certified to comply with U.S. FDA standards and also comply with applicable IEC, UL, ETL, CSA & ROHS standards.
Specifications:
- Control: X-Laser Mercury integrated
- Scanners: High-speed, closed-loop galvanometers, max scan angle 45 degrees, 20K PPS at 8-degrees
- Settings interface: Mercury LCD
- Wavelengths: 650nm red, 532nm green, 445nm blue
- Color modulation: Analog, 1,000 colors
- Physical: 18.5" L x 15" W x 15.5" H; 49lbs
- Beam source: Direct-injection diode modules
- Housing type: Anodized 6061 aluminum
- Power draw: 280W typical, 560W peak
- Beam divergence: 1-2 mRad
- Cooling: External heat sink and fan system
- FDA/IEC hazard class: Class 4
- International safety: IEC 60825-1 ed. 2007
- FDA/CDRH: 21CFR1040.10 and 1040.11(c)
- Canadian safety: CSA C.22.2 No. 60950-1
- EU safety: EN 60825-1, EN 60950
