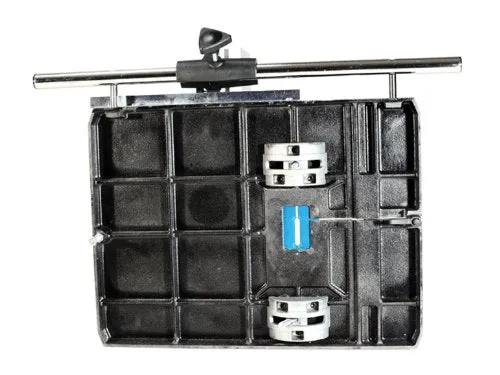

Features include pyramid shaped spine, 1-3/4HP TEFC Motor, quick release tension, 115 volt outlet and micro polished 21 X 16" table mounted onto oversized trunnion paired with Aluminum Hi/Low Fence.

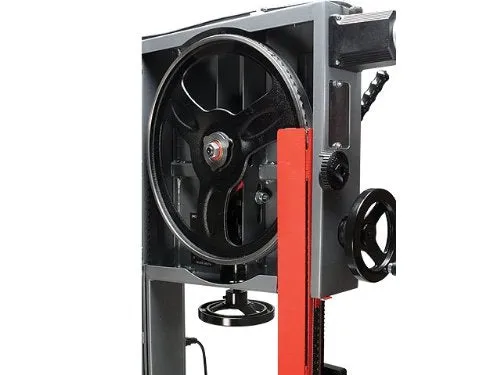

Solid Cast Wheels are electronically, dynamically balanced & fitted with polyurethane one-piece tires designed to run cooler & last longer than conventional tires.

The worm gear & pinion is ultra-smooth and engineered to have minimum flex even when fully extended. This is a trade mark of Laguna, just like the famous ceramic Laguna guides.

(Shown with Optional and )

• Precision Tension Scale
• Hand Wheel Conveniently Mounted under Upper Cabinet
• 4" Dust Port. Innovative Table Insert Forces Dust into Port

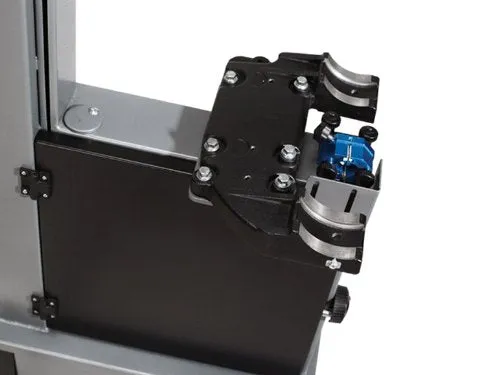

• Laguna 10 Point Ceramic Blade Guides, no moving parts
• Magnetic Blade Guard
• Ultra Smooth Worm Gear-driven Rack & Pinion
• Minimum Flex in Guide Post even when fully Extended
• Premium Throat Plate 2" X 5" with Set Screws
• Dynamically Balanced Cast Iron Wheels
• Polyurethane Single Piece Cold Running Tires
• Flat Poly-Groove Drive Belt
• Massive Adjustable Lower Wheel Shaft
• Blade Speed Optimized for Wood Cutting
• Heavy Duty Enclosed Stand with Rubber Pads
• Dual Windows Display Tracking & Tension Information
• Euro Style Adjustable & Replaceable Door Hinges
• Two-Tone Powder Coated Paint
• World Class Fit & Finish

Motor: 1-3/4HP, TEFC, 60Hz.
Voltage:115V
Amperage: 14/7 (115/230V)
6' Cord with Nema 5-15P Plug
CSA Certified
Illuminated On/Off Direct Start Switch with Safety Key
Pre-Wired 115V Outlet for Light

Resaw Capacity: 12"
Throat Capacity: 13"
Blade Length: 115"
