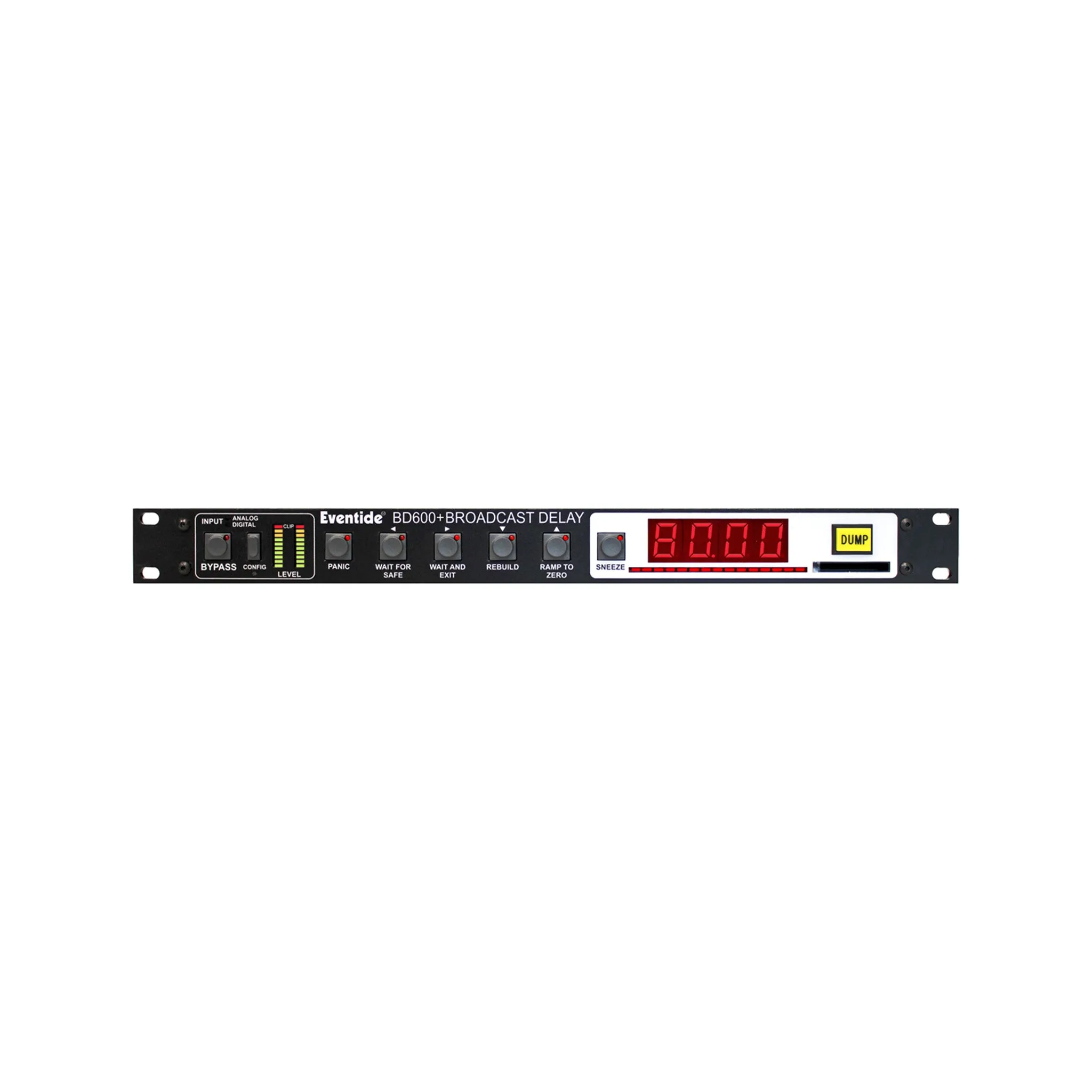

The BD600W offers an unprecedented 80 seconds of the highest quality revenue and license-protecting delay — twice as much as other delays. You have the flexibility to customize the delay buffer length from four seconds to the full 80 seconds. Dump can be customized in 1/2 second increments up to 10 seconds. Each time the DUMP button is pressed, only one segment is deleted. For example, if a unit is set to the full 80 seconds of delay buffer, and is set up to provide 8-second dumps, you will have ten separate dump segments. Pushing the DUMP button the first time cuts out one 8-second segment. You still have 72 seconds of delay protection. If this is followed by more trash-talk, push the DUMP button again and you still have over a minute of delay protection.

The “sneeze” button momentarily “edits” audio entering the delay, allowing the host to sneeze, cough, or make a short comment without being heard on-air – and without dead air. Your station cannot afford to work without a net. With the BD600W , you will never worry about running out of delay memory.

Features:

• Microprecision delay mode for HD synchronization
• 80 seconds of delay protection
• USB Remote Control
• WheatNet-IP connectivity
• “Panic” allows WAV file play back during delay rebuild
• 24-bit AES/EBU digital I/O, with optional Wordclock sync
• 24-bit analog XLR I/O
• User-defined “dump” length segmentation
• “Sneeze” button for momentary edit
• RS-232 I/O
• Network remote capabilities offer 16 assignable inputs and outputs

Specifications:

• Analog I/O: XLR pin 2 hot, true differential balanced, 4 dBm nominal
• Digital I/O: 2 Channels of 24-bit AES/EBU
• Profanity Delay Max. Length: Can be set to 4, 6, 8, 12, 16, 20, 30, 40, 60, or 80 seconds
• Micro Precision Fixed Delay: Can be set from .010 seconds to 9.999,999 seconds in microsecond steps
• Remote: 4 configurable inputs (closure to ground), 2 relay-isolated status outputs
• Compact Flash Interface: Supports Type I and Type II Compact Flash cards for .WAV sample playback and software update
• Sample Rate: 48kHz, 44.1kHz, Word Clock, AES/EBU
• Power: 40W, 100-240 VAC, 50/60Hz
• Dimensions: 19" (w) x 10.5" (D) x 1.75" (H) / 48.3cm (W) x 26.7cm (D) x 4.5cm (H)
• Weight: 4.1 kg / 9 lb
