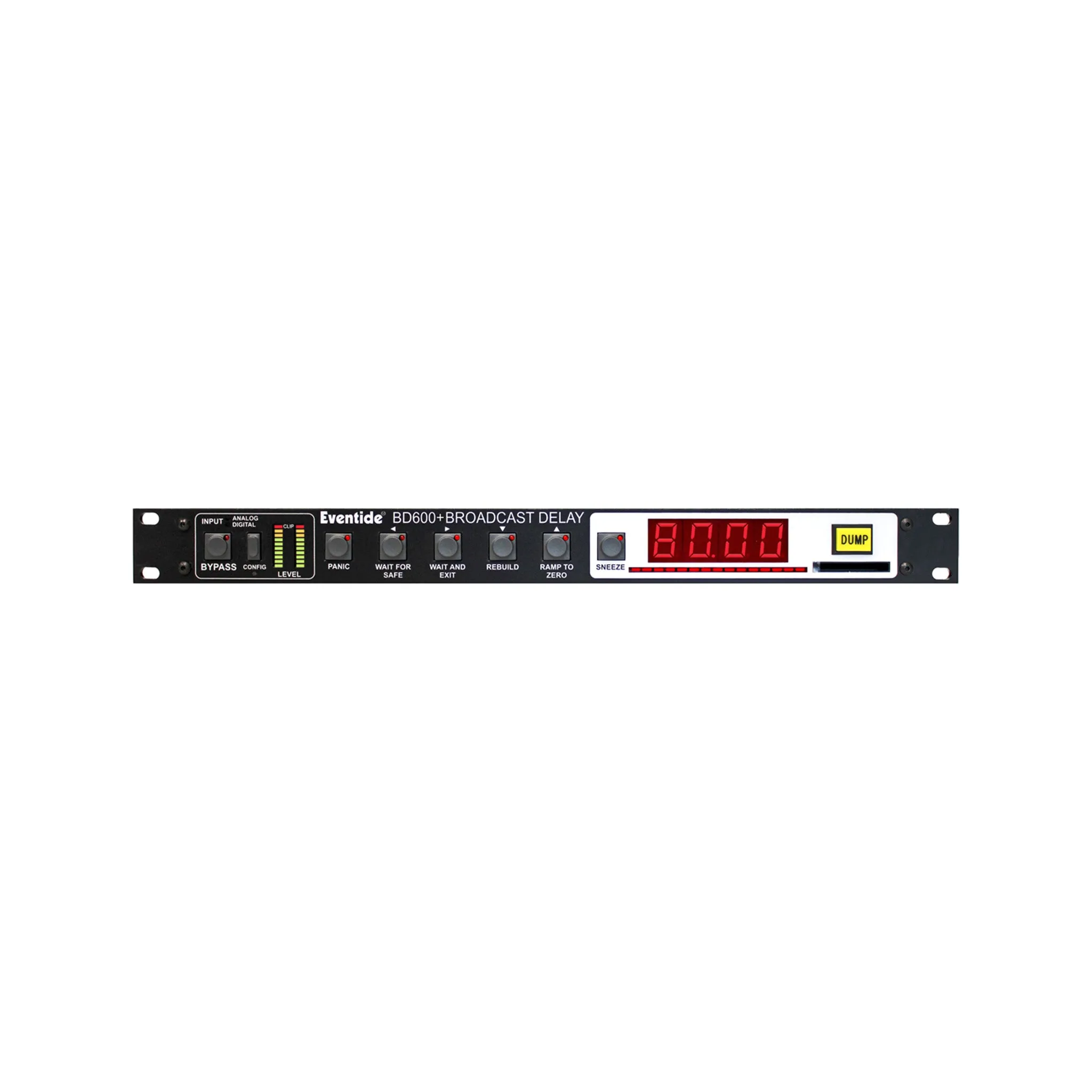

The BD600E offers an unprecedented 80 seconds of the highest quality revenue and license-protecting delay – twice as much as other delays. You have the flexibility to customize the delay buffer length from four seconds to the full 80 seconds. Dump can be customized in 1/2 second increments up to 10 seconds. Each time the DUMP button is pressed, only one segment is deleted. For example, if a unit is set to the full 80 seconds of delay buffer, and is set up to provide 8-second dumps, you will have ten separate dump segments. Pushing the DUMP button the first time cuts out one 8-second segment. You still have 72 seconds of delay protection. If this is followed by more trash-talk, push the DUMP button again and you still have over a minute of delay protection. The “sneeze” button momentarily “edits” audio entering the delay, allowing the host to sneeze, cough, or make a short comment without being heard on-air – and without dead air. Your station cannot afford to work without a net. With the BD600E , you will never worry about running out of delayed memory.
Features:
- Micro-precision delay mode for HD synchronization
- 80 seconds of delay protection
- USB Remote Control
- “Panic” allows WAV file playback during delay rebuild
- 24-bit AES/EBU digital I/O, with optional wordclock sync
- 24-bit analog XLR I/O
- User-defined “dump” length segmentation
- “Sneeze” button for momentary edit
- Remote control capability
- Easy-to-wire euroblock for remote hookup (on base unit)
- RS-232 I/O
- Programmable I/O
- Remote option offers 16 bi-polar opto-isolated inputs and 16 open-collector outputs
Specifications:

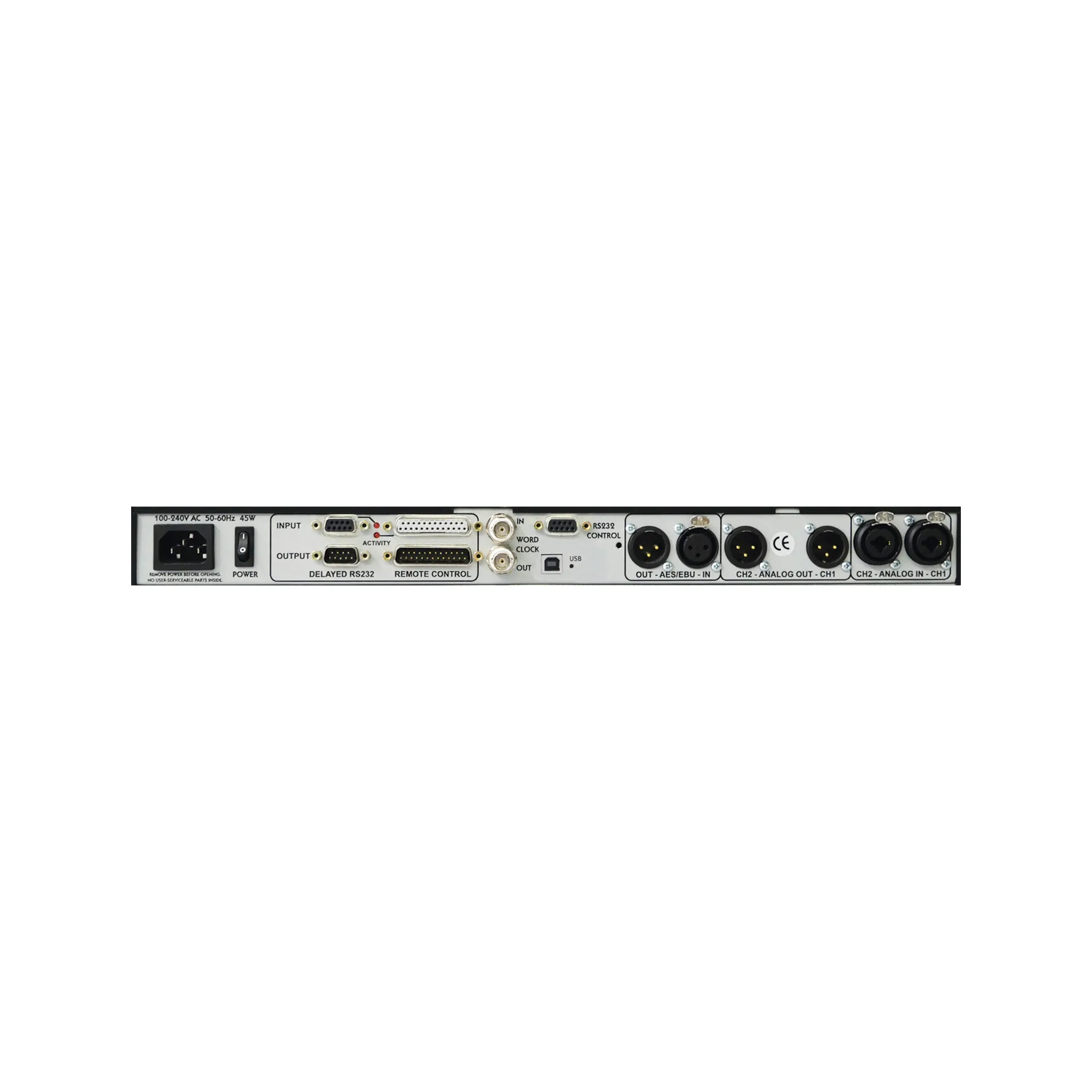

- Analog I/O: XLR pin 2 hot, true differential balanced, 4 dBm nominal
- Digital I/O: 2 Channels of 24-bit AES/EBU
- Profanity Delay Max. Length: Can be set to 4, 6, 8, 12, 16, 20, 30, 40, 60, or 80 seconds
- Micro Precision Fixed Delay: Can be set from .010 seconds to 9.999,999 seconds in microsecond steps
- Remote: 4 configurable inputs (closure to ground), 2 relay-isolated status outputs
- Compact Flash Interface: Supports Type I and Type II Compact Flash cards for .WAV sample playback and software update
- Sample Rate: 48kHz, 44.1kHz, Word Clock, AES/EBU
- Power: 40W, 100-240 VAC, 50/60Hz
- Dimensions: 19" (w) x 10.5" (D) x 1.75" (H) / 48.3cm (W) x 26.7cm (D) x 4.5cm (H)
- Weight: 4.1 kg / 9 lb
